Poetry and making

From a poem to a calligraphy print: text, layout and preview

A small calligraphy project connects poems, vertical page layouts and image downloads. Its samples and two actual cached-image checks reveal creative choices, text-to-image correspondence and the limits of its published AI account.

Start with the maker’s existing Mountain Dwelling in an Autumn Dusk sample. The public entrance currently limits input to its anthology. This account checks original images, public code and two cached routes, without running remote generation.

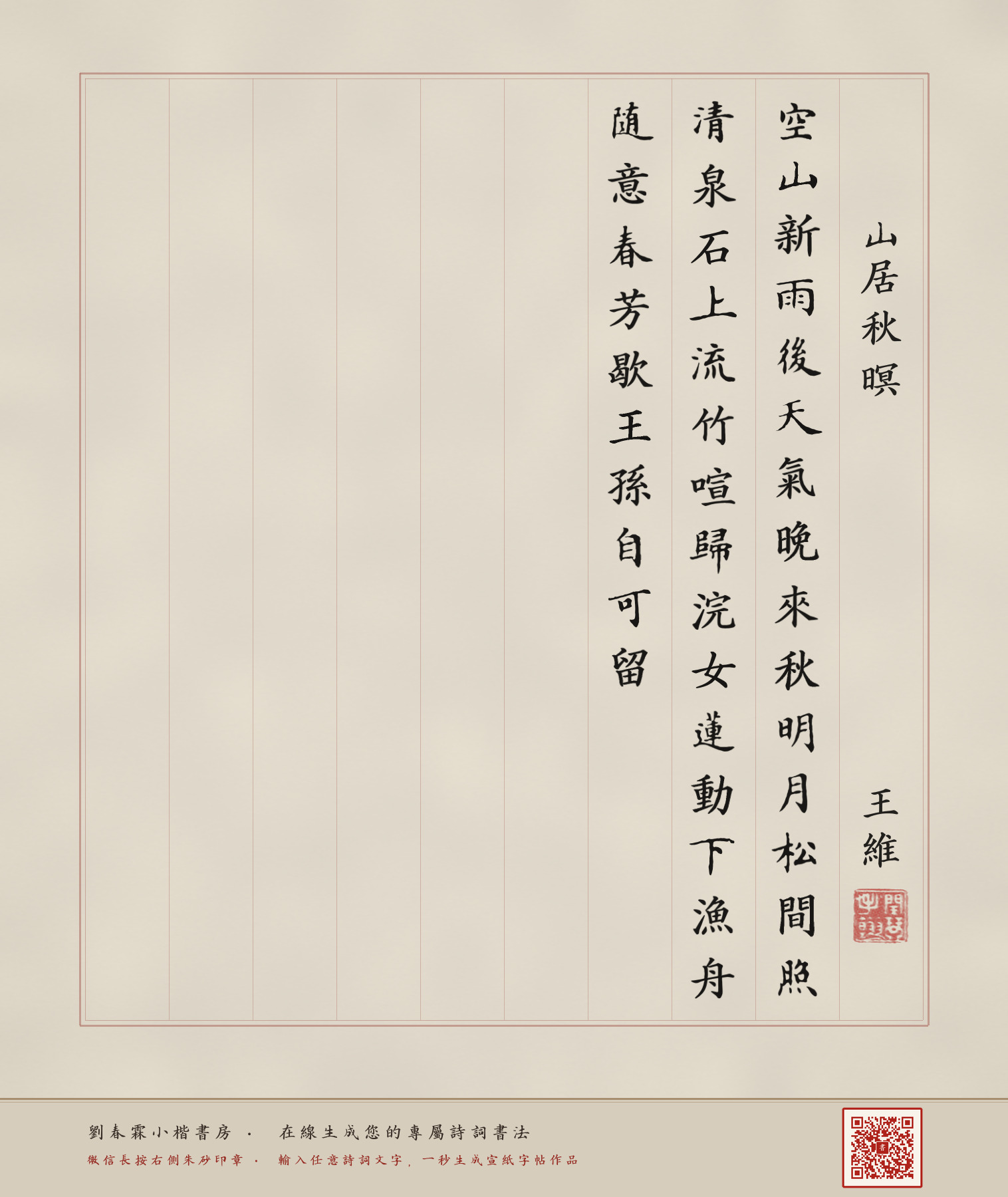

The maker’s sample of Wang Wei’s poem uses traditional characters in pale red vertical rules, read right to left, with a title, author and red seal. The original footer and QR code remain.
The maker’s existing Mountain Dwelling sample, preserved in full; BitShovel did not generate it. The original footer remains, while custom input is currently closed on the public page. · Open full-size image
In this articleContents4

中文

Start with a poem you can keep as an image

In the maker’s Mountain Dwelling in an Autumn Dusk sample, the forty-character poem runs in vertical columns from right to left, with separate places for its title, author and red seal. Pale paper, fine rules, spacing and open space contribute to the appearance of a calligraphy album leaf. They turn familiar words into an image to enjoy, keep or share, suggesting other ways to present a text you care about.

Shared by dvbs2000 as the Liu Chunlin AI calligraphy project, the current page lets visitors choose among 963 anthology records, select traditional or simplified characters and ruled or plain paper, then view and download an image. Custom text is locked for ordinary visitors; the page and README direct that request to the maker. Earlier wording about arbitrary input does not establish that it is currently available.

Sources and further reading

中文

The text and the page need different decisions

The public frontend uses explicit rules to separate title, author and body, inspect the first lines’ lengths and suggest different layouts for five- and seven-character verse. Character switching uses two prepared text versions in each anthology record; paper controls offer ruled and plain styles. The visible design contribution is to connect a text and its page arrangement through a simple interface, beyond changing a background color.

A longer poem brings another decision. The frontend calculates page capacity and warns that overflow will use the first page only. An album leaf may therefore be an excerpt, even when its title names the complete work. A short poem can suit a single print; preserving a whole text requires checking its correspondence with the pages. We did not test how the remote service truncates each longer work, so a page hint and the resulting image remain separate evidence.

Sources and further reading

中文

Connect the selected poem, preview and download

Image delivery follows two paths. The public script maps seven exact combinations to existing JPG files; other choices send text, title and layout parameters to a remote rendering endpoint. A prepared image can show the appearance immediately, but it still needs to belong to the selected poem. A button labeled Generate does not establish that a model ran for that click.

On October 26, normal search, selection and button actions checked the traditional-character ruled and plain cache routes. The page selected Wang Jian’s New Bride, beginning with a bride entering the kitchen, but both previews and download links used existing images of Li Shangyin’s Jinse. The fixed p0025 record and cache map show the same mismatch: a connection between a work and an image, not evidence of a model hallucination. No generation backend was invoked, and these two routes do not establish that other poems are wrong.

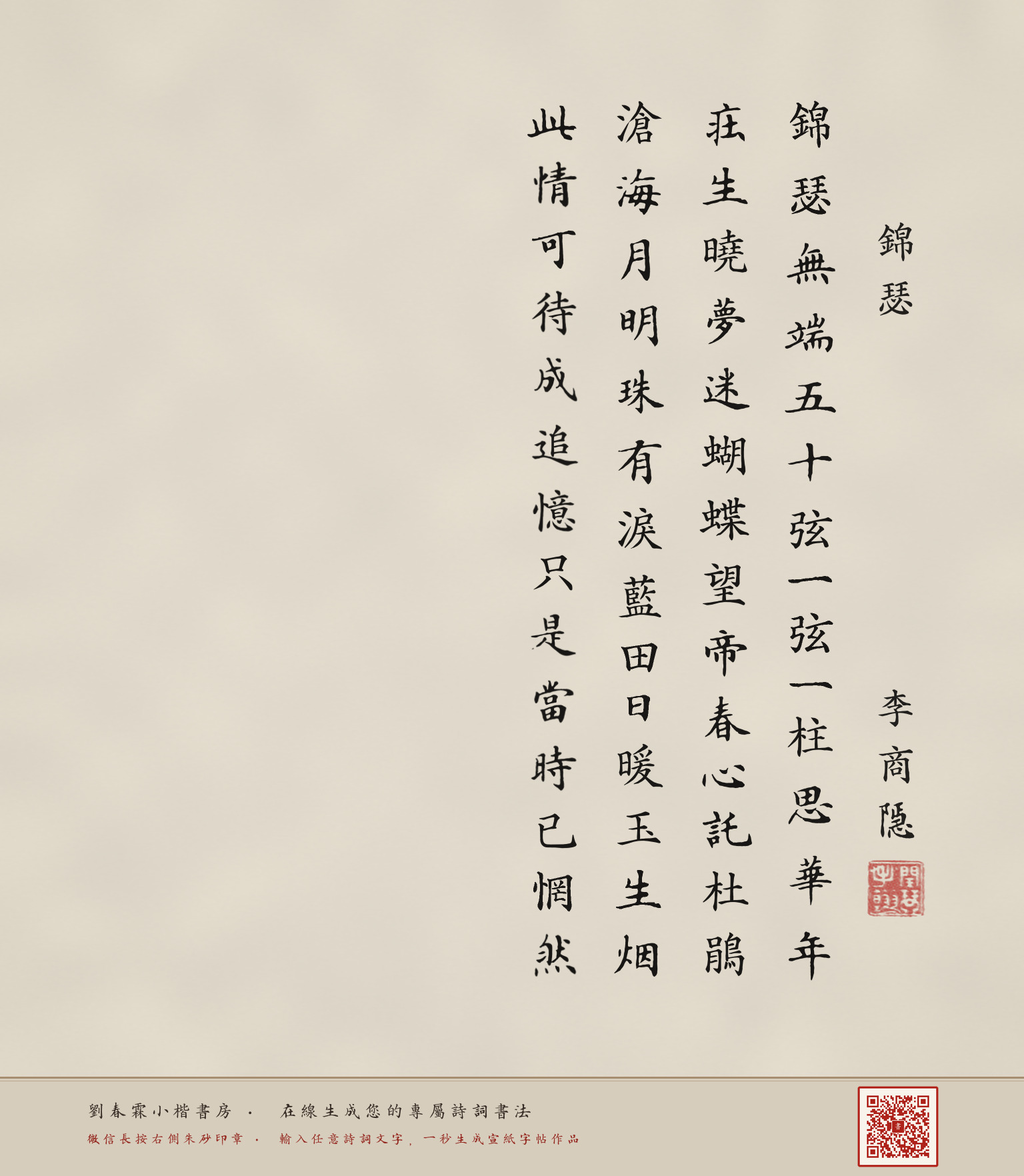

The plain-paper cached image is titled Jinse, attributed to Li Shangyin, and begins with his poem’s opening line. It is not the selected New Bride by Wang Jian.
This original maker image was displayed and linked for download by the checked plain-paper cache route. Its title and text identify Jinse, while the page selected Wang Jian’s New Bride. This checks cached-image correspondence, without running the rendering backend. · Open full-size image
Sources and further reading
  • Public poem selection, layout hints and image deliveryFixed frontend · byte-identical to the page read October 26Line-length rules, page-size hints, seven cached combinations and a remote-render branch; frontend code does not establish the backend model implementation.
  • 963 anthology records and the original p0025 textFixed data file · byte-identical to the public JSONIdentifies the selected poem, author and text. A record count does not establish complete character coverage or correct output for every option.
  • Plain-paper Jinse cached imageMaker image · used by the checked plain-paper cache routeThe image identifies Li Shangyin’s Jinse rather than the selected Wang Jian poem; its text and layout are unaltered.
  • Ruled Jinse cached imageMaker image · used by the checked ruled cache routeThe other checked cache route also displays Li Shangyin’s Jinse; these two routes do not establish behavior for every poem.
  • Current public calligraphy projectActual poem selection and cached-image checks · October 26Used normal search, selection, paper controls and the button to inspect two preview/download routes, without an account, admin access or a generation request.

中文

Useful design choices and methods still to establish

The maker describes copybook analysis, variations of repeated characters, component changes and brush-like adjustments intended to reduce mechanical regularity, and offers a personal “90%” comparison. These explain an intention, not an independent score. The public repository contains no backend, font files, training implementation or identified model. It does not establish AI’s role in development, glyph preparation or each output, or show that a model learned a calligraphic style.

The project already offers a useful creative idea: combine a poem you care about, a suitable length and a page treatment to give the text another way to be seen. For the result to serve someone, its title, attribution, words, layout and image must belong together. The samples offer a starting point for appreciation. Personal messages, complete long texts or comparisons of calligraphic styles need suitable access and fuller production evidence; the AI label cannot guarantee those steps.

Sources and further reading
  • Maker dvbs2000’s original post and repliesMaker record · posted October 25, read October 26Copybook analysis, variation methods and “90%” are the maker’s claims, not a verified training process or a calligraphy score.
  • Fixed project account, input conditions and galleryOriginal README · revision 4b281428Custom-text limits, character and paper options, page descriptions and original samples; the complete rendering backend and fonts are not published here.
  • Public poem selection, layout hints and image deliveryFixed frontend · byte-identical to the page read October 26Line-length rules, page-size hints, seven cached combinations and a remote-render branch; frontend code does not establish the backend model implementation.
  • Current public calligraphy projectActual poem selection and cached-image checks · October 26Used normal search, selection, paper controls and the button to inspect two preview/download routes, without an account, admin access or a generation request.
